Geberit In Wall Shower Drain

PAGE NUMBER: 2014400
Was £353.44
Now Only £267.20 (inc. VAT)

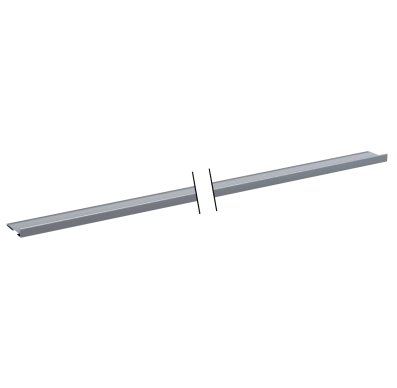

Collector Profile
Select Option
  • Yes Please (+ £83.20)
  • No Thanks
Geberit Ready-To-Fit Sets
Select Option
  • Plastic, White (+ £53.83)
  • Plastic, Gloss Chrome (+ £68.52)
  • Stainless Steel (+ £83.20)
  • Stainless Steel, Anti-Vandal (+ £107.65)
  • Frameless, For Tiles (+ £68.52)
  • Multi-Piece, For Tiles (+ £107.65)
  • No Thanks
Quantity: - + Total: £267.20 (inc. VAT)

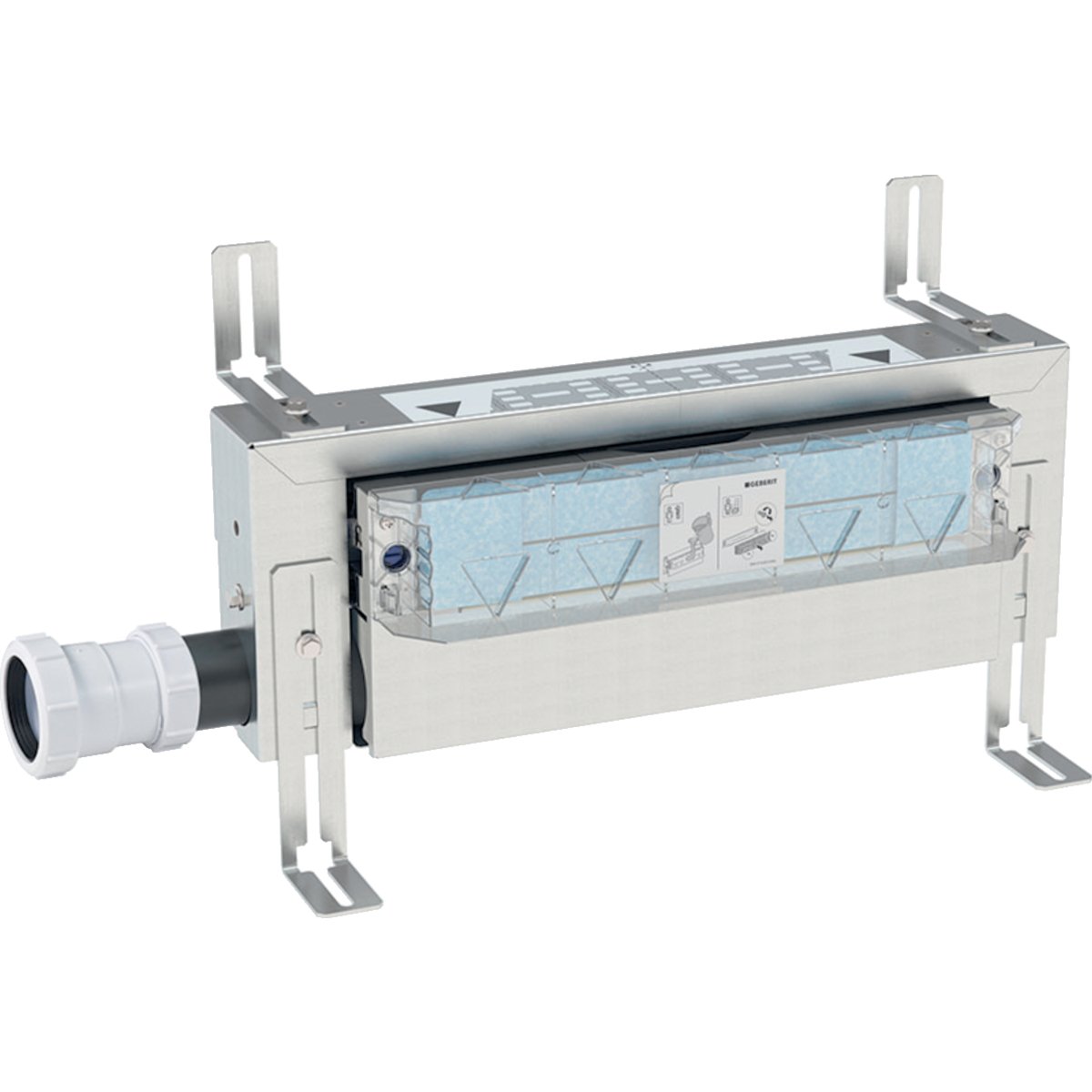

Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Geberit In Wall Shower Drain
Hover over image to zoom
Delivery & Returns

Geberit In Wall Shower Drain

For domestic bathrooms
For draining water from flat-bottom showers
For solid walls, drywalls, or prewalls in solid and drywall construction
For use with composite seals

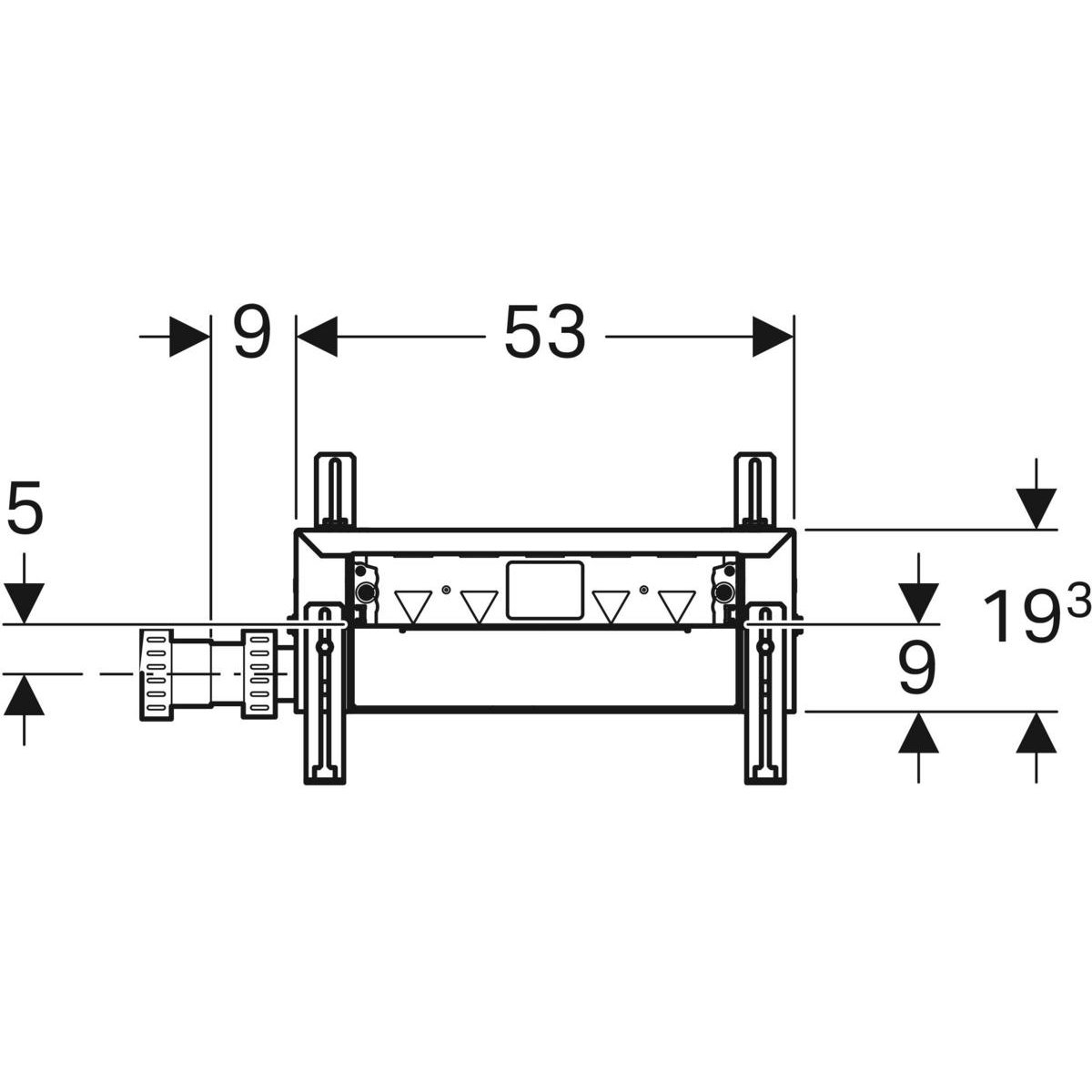

For floor constructions 9 – 20 cm
Quality-monitored in accordance with EN 1253-3
Minimum screed height at inlet 90 mm
Plaster thickness 5 – 40 mm
Tile structure floor 4 – 26 mm
Tile structure wall 4-35 mm

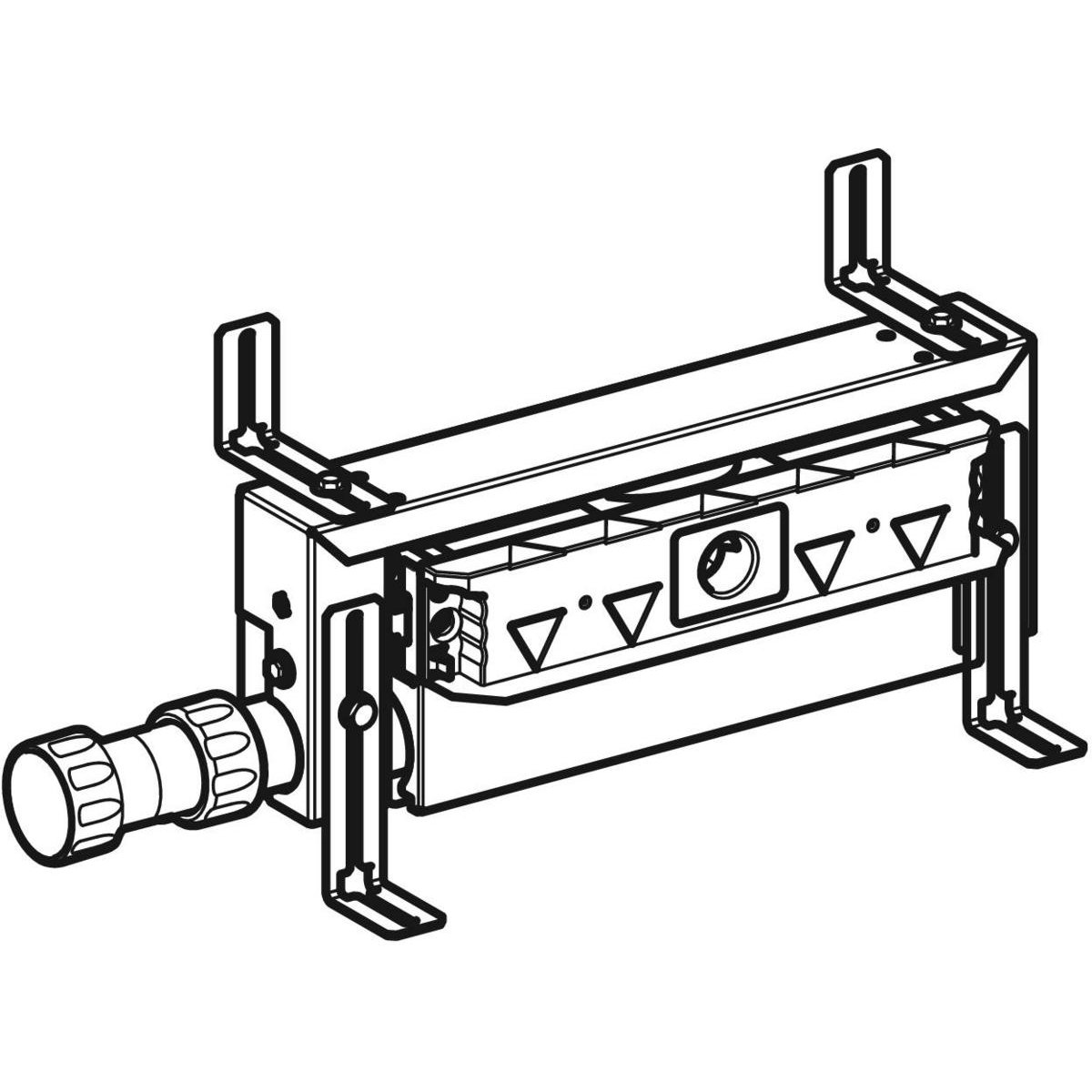

Height-adjustable frame
Sealing level adjustable for tension-free sealing connection

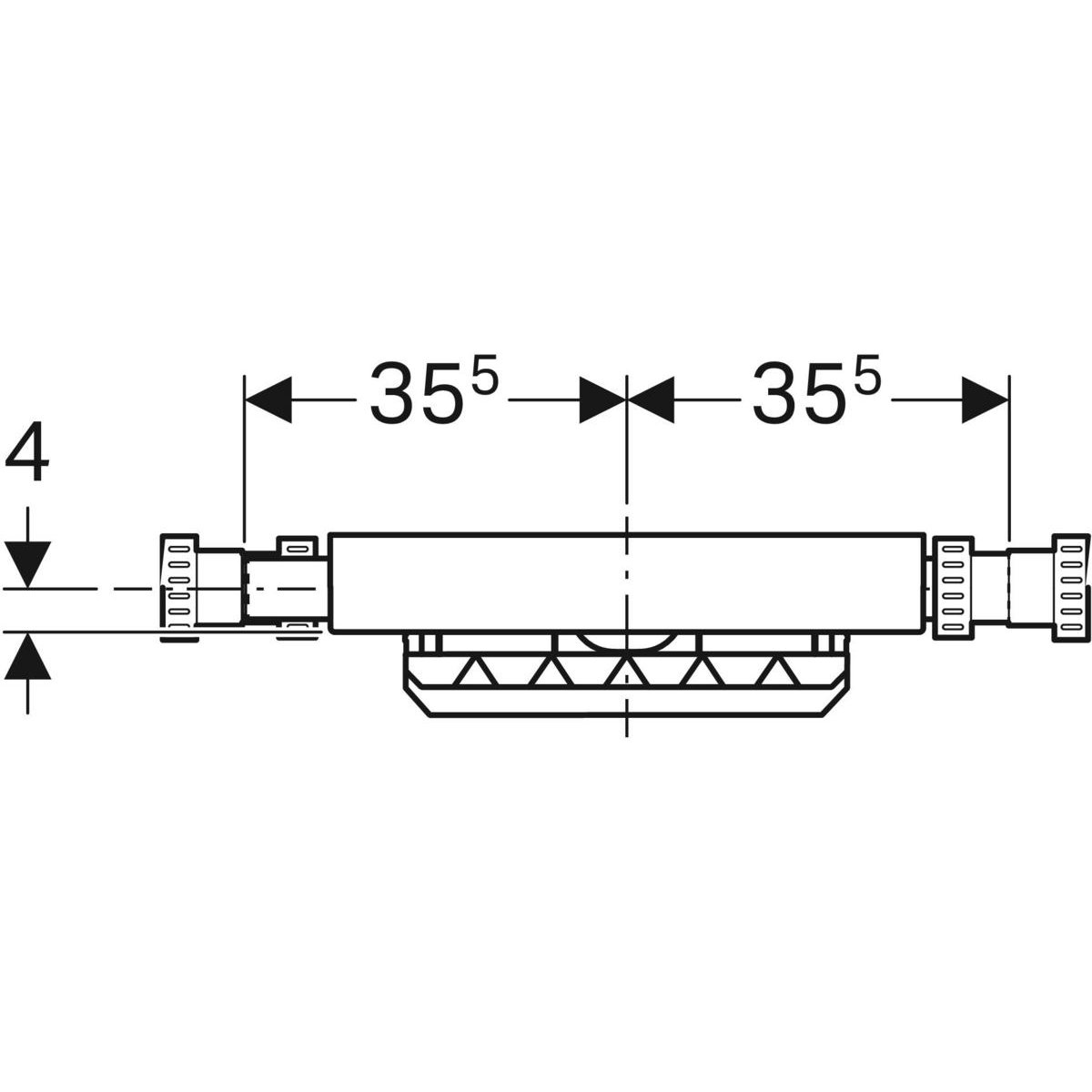

Drainage outlet – left or right
Pre-mounted waterproof membrane, 10 cm circumferential
Inlet height of trap adjustable
Estimated fall of the floor: 1-2%
Trap insert can be removed for cleaning
Drainage capacity 0.8 l/s
Depth of water seal 50 mm
Straight connector, made of PE-HD, diameter 50 mm
Protection box cover with integrated outlet sheet
Fastening material

Product Codes

  • 457.538.00.1 - Geberit In Wall Shower Drain
  • 154.340.FW.1 - Geberit Collector Profile

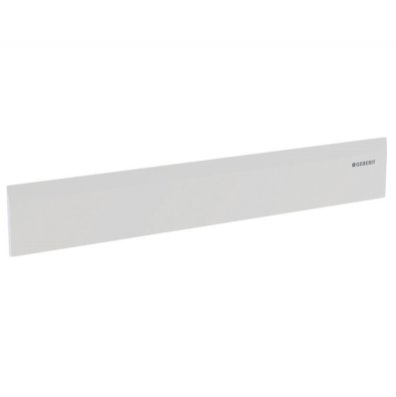

  • 154.335.11.1 - Geberit Plastic, White Ready-To-Fit Set For In Wall Drain
  • 154.335.21.1 - Geberit Plastic, Gloss Chrome Ready-To-Fit Set For In Wall Drain

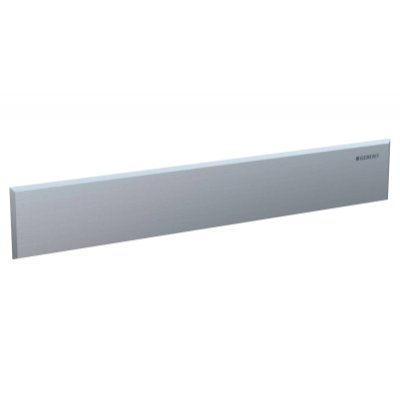

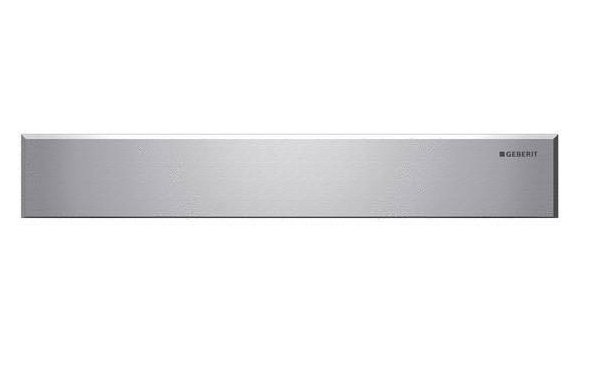

  • 154.336.FW.1 - Geberit Stainless Steel Ready-To-Fit Set For In Wall Drain
  • 154.337.FW.1 - Geberit Stainless Steel, Anti-Vandal Ready-To-Fit Set For In Wall Drain
  • 154.338.00.1 - Geberit Frameless, For Tiles Ready-To-Fit Set For In Wall Drain
  • 154.339.11.1 - Geberit Multi-Piece For Tiles Ready-To-Fit Set For In Wall Drain
